Builders and Architects DRAWINGS AND SPECIFICATIONS

Below you will find builders and architects drawings for our most basic elevator cab configurations.On our Dealer Portal you’ll find access to over 600 layout files. We strongly recommend that you contact us first, or fill out an order form for specific job drawings, we’re happy to help.

Standard Layouts and Car Sizes with Wrap-Around Style Gate

Wrap Gate B: No Trim

Door Centerlines Represent 36″ Swing Doors (Other Widths Available)

Requires a Minimum 10″ Pit Depth

Wrap B 1

Car Size 36×48
pdf logodwg logo

Car Size 40×54
pdf logodwg logo
Car Size 36×60
pdf logodwg logo
accessible
Wrap B 2

Car Size 36×48
pdf logodwg logo

Car Size 40×54
pdf logodwg logo
Car Size 36×60
pdf logodwg logo
accessible
Wrap B 3
Car Size 36×48
pdf logodwg logo

Car Size 40×54
pdf logodwg logo

Car Size 36×60
dwg logo
accessible

Standard Layouts and Car Sizes with 3-Speed Car and Landing Doors

Door Centerlines Represent Either 31-1/2″ or 35 1/2″ Clear Openings Depending on Model

Requires a Minimum 10″ Pit Depth

3spd 1

Car Size 36×48
pdf logodwg logo

Car Size 40×54
pdf logodwg logo

Car Size 36×60
pdf logodwg logo

accessible
3spd 2

Car Size 36×48
pdf logodwg logo

Car Size 40×54
pdf logodwg logo

Car Size 36×60
pdf logodwg logo

accessible
3spd 3

Car Size 36×48
pdf logodwg logo

Car Size 40×54
pdf logodwg logo

Car Size 36×60
pdf logodwg logo

accessible

Standard Layouts and Car Sizes with 3-Speed Car and Swing Landing Doors

Door Centerlines Represent Either 32″ or 36″ Swing Doors, Depending on Model

Requires a Minimum 10″ Pit Depth

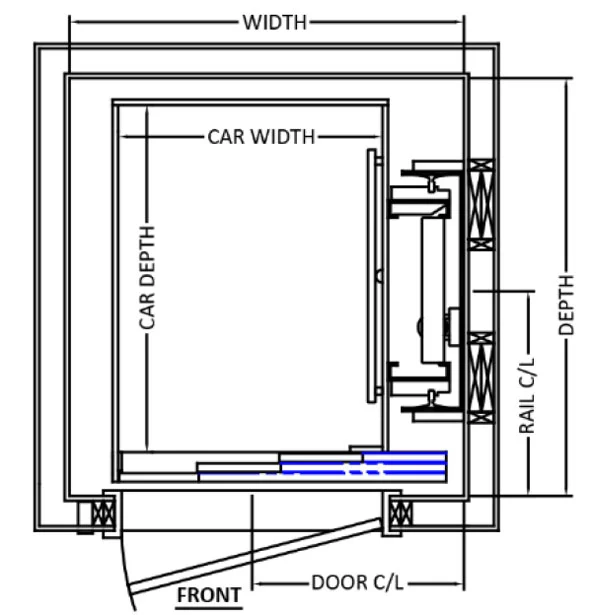

swing 1

Car Size 36×48
pdf logodwg logo

Car Size 40×54
pdf logodwg logo

Car Size 36×60
pdf logodwg logo

accessible

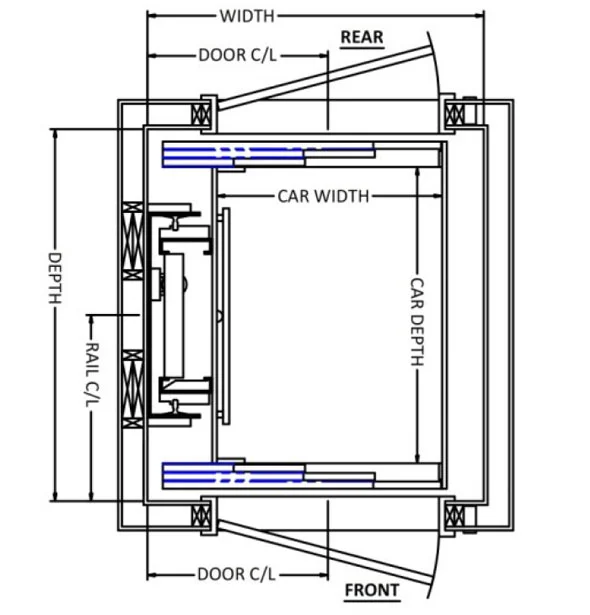

swing 2

Car Size 36×48
pdf logodwg logo

Car Size 40×54
pdf logodwg logo

Car Size 36×60
pdf logodwg logo

accessible

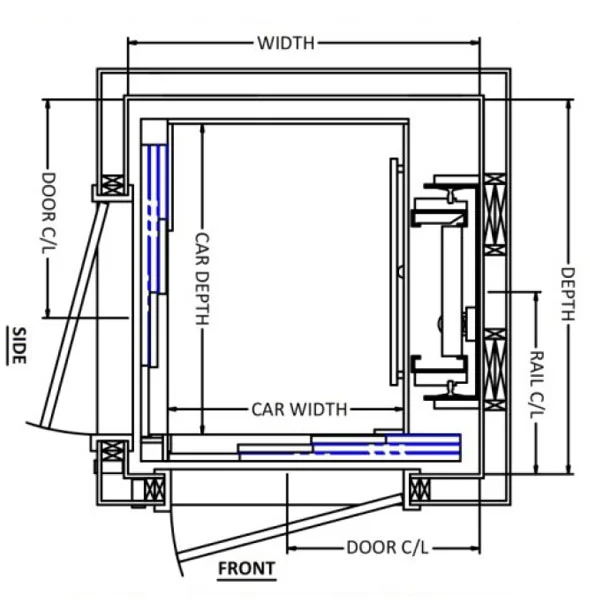

swing 3

Car Size 36×48
pdf logodwg logo

Car Size 40×54
pdf logodwg logo

Car Size 36×60
pdf logodwg logo

accessible

Standard Layouts and Car Sizes with 2-Speed Car and Landing Doors

Door Centerlines Represent 35 1/2″ Clear Openings

Requires a Minimum 14″ Pit Depth

*These Layouts Exceed the 15 SQ FT Code and May Require a Local Variance

2 speed 1

Car Size 42×54
pdf logodwg logo

accessible
2 speed 2

Car Size 42×54
pdf logodwg logo

accessible
2 speed 3

Car Size 42×54
pdf logodwg logo

accessible
